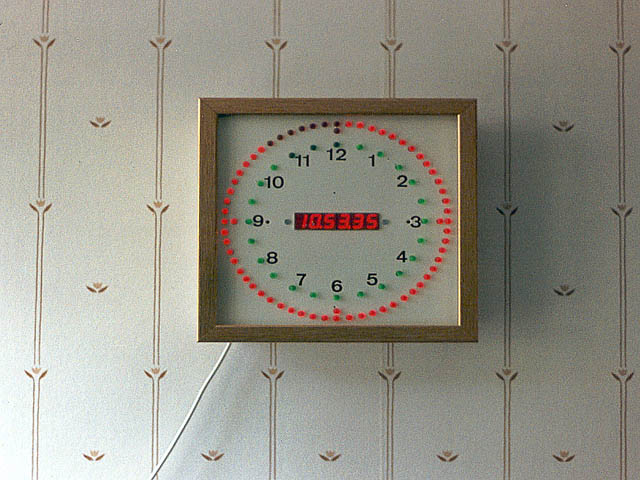

Clock 1
Designed and Manufactured by: eikkape 1987

---

Clock 2
Designed and Manufactured by: eikkape 1988

---

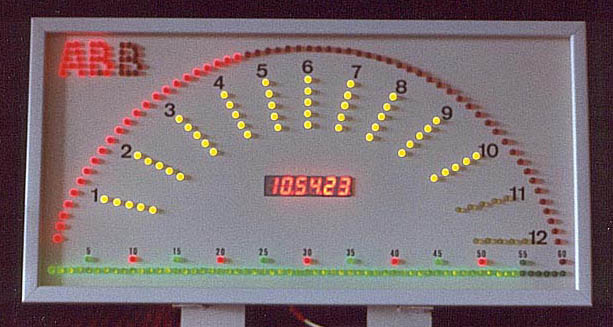

Clock 3
Designed and Manufactured by: eikkape 1989

---

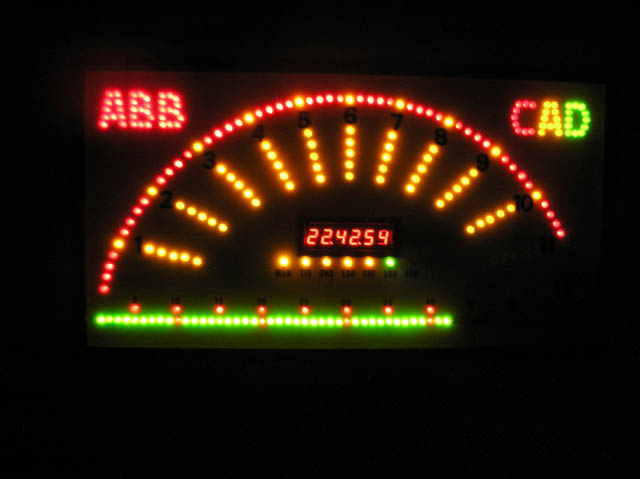

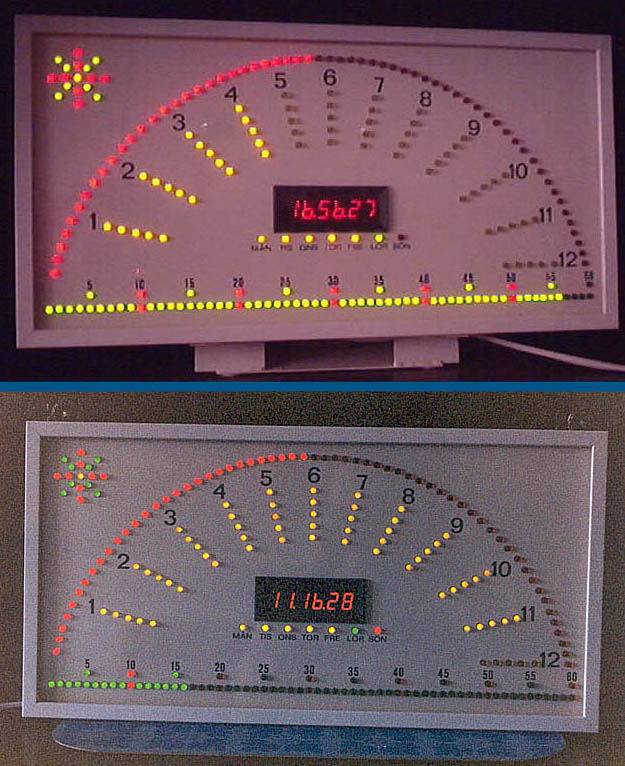

Clock 4
Designed and Manufactured by: eikkape 1990

---

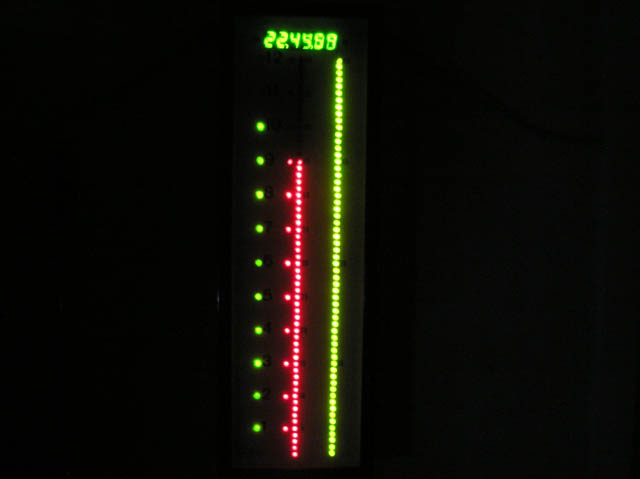

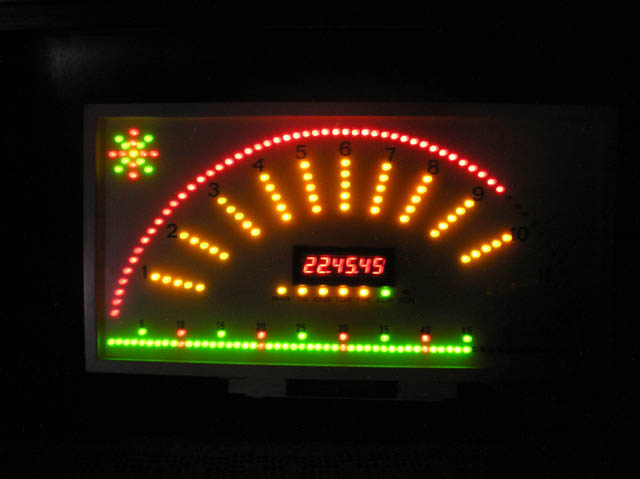

Clock 5
Designed and Manufactured by: eikkape 1992

---

More info Clock 5.

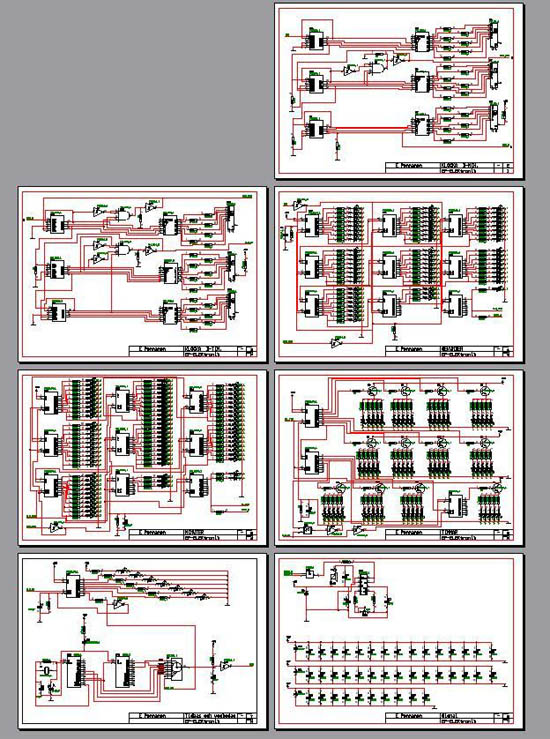

Circuit Diagram.

---

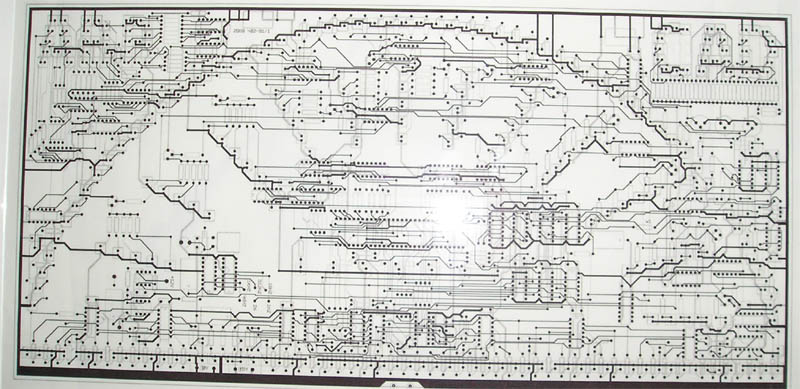

Layout. Total drill holes: 2292. Layer: 2.

---

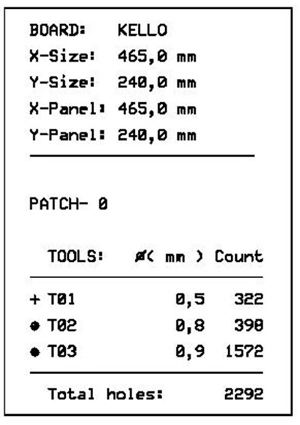

Drill tools.

---

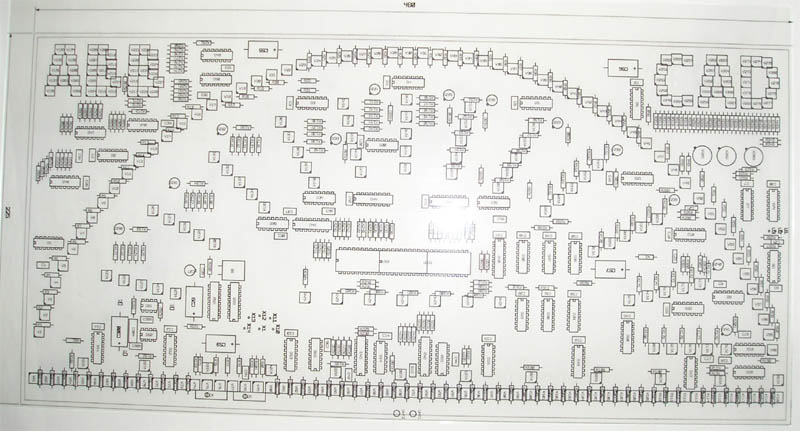

Assemblydrawing. Total components: 756.

---

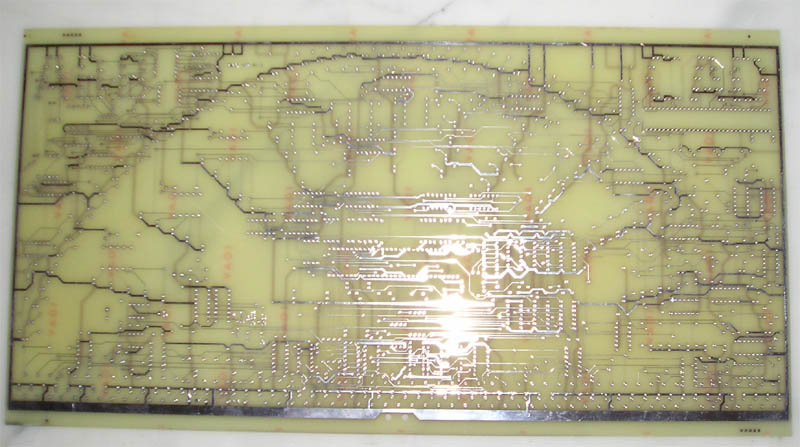

PCB - (Printed Circuit Board) Without soldermask. Plated holes.

---

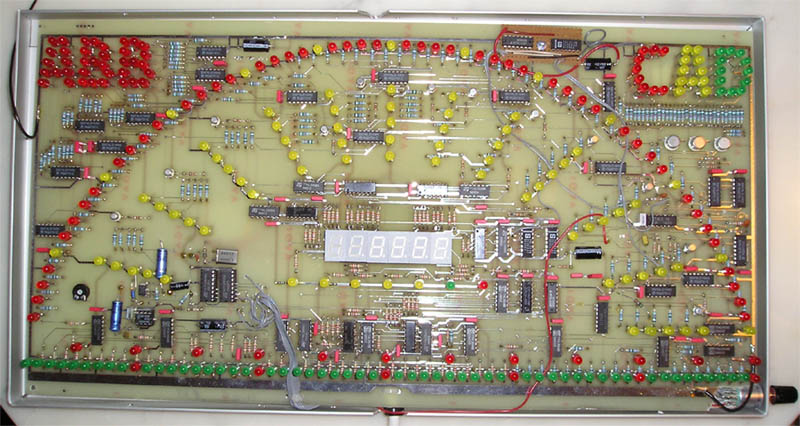

Circuit boards with mounted components. Total solder points: 1970

---

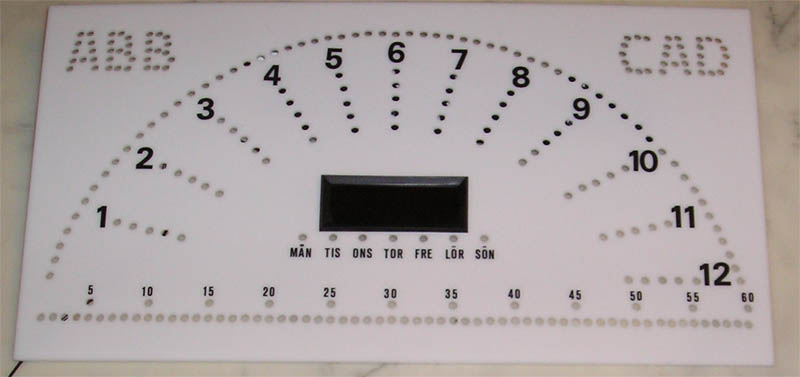

Clockface. Total holes: 257 D=5.2mm

---

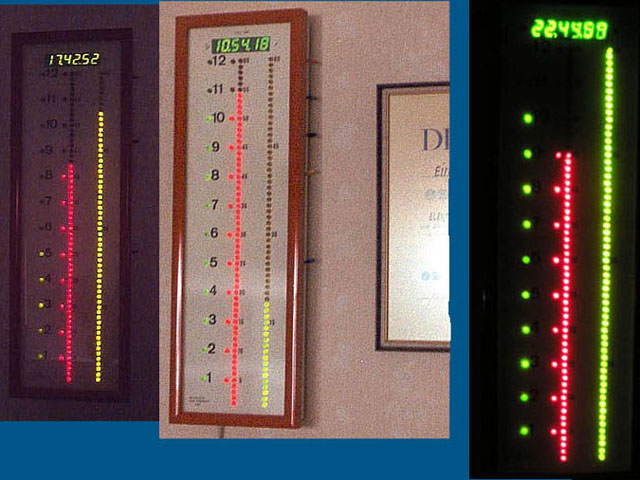

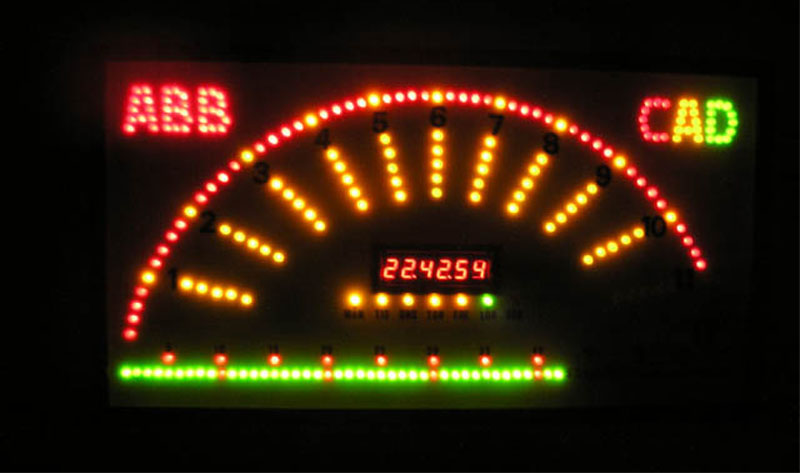

The final products. Analog and Digital LED - Clock (light emitting diodes).

---
